Width / mm
96126156196216246296316346396446496546596646696746796896996
Standard width options from 96 to 996 mm.
STANDARD MOLD BASES / CONFIGURED FOR YOUR BUILD
A solid foundation.
For what comes next.
Choose a standard mold-base size and build up your component specification. From clamp plates to the ejector set, review your choices together before requesting a quotation.
One base. Every component considered.AVAILABLE FROM STOCK OR MADE TO ORDER
THE STANDARD SIZE RANGE
Small beginnings. Larger possibilities.
Select your width and length in the configurator. Compatible guide holes, threads and component choices are offered for each mold size.
Length / mm
9612615619624629634639644649654659664669674679689699610961196
Standard length options from 96 to 1196 mm.
Size combinations and component options depend on the selected configuration. Contact us for a requirement outside the listed range.
THE COMPLETE ASSEMBLY
Every layer has a purpose.
Configure the materials, plate thicknesses and component options for your selected mold base, with a live assembly preview.
Clamp plates
Fixed and moving clamp plates, with overhang and locating-ring recess choices.
Core & cavity plates
Material and thickness options for the working plates of your mold.
Backing plates
Optional core and cavity backing plates to suit your assembly.
Risers & ejector plates
Riser dimensions and ejector plate options for your selected configuration.
See availability as you configure.
The selected build shows “Available from stock” or “Made to order”. Our team confirms the specification, price and delivery with your quotation.
FROM PLATES TO YOUR MOLD BASE
Configured with precision.
Packed with care.
Follow the details as you scroll. Then build your own specification in the configurator.

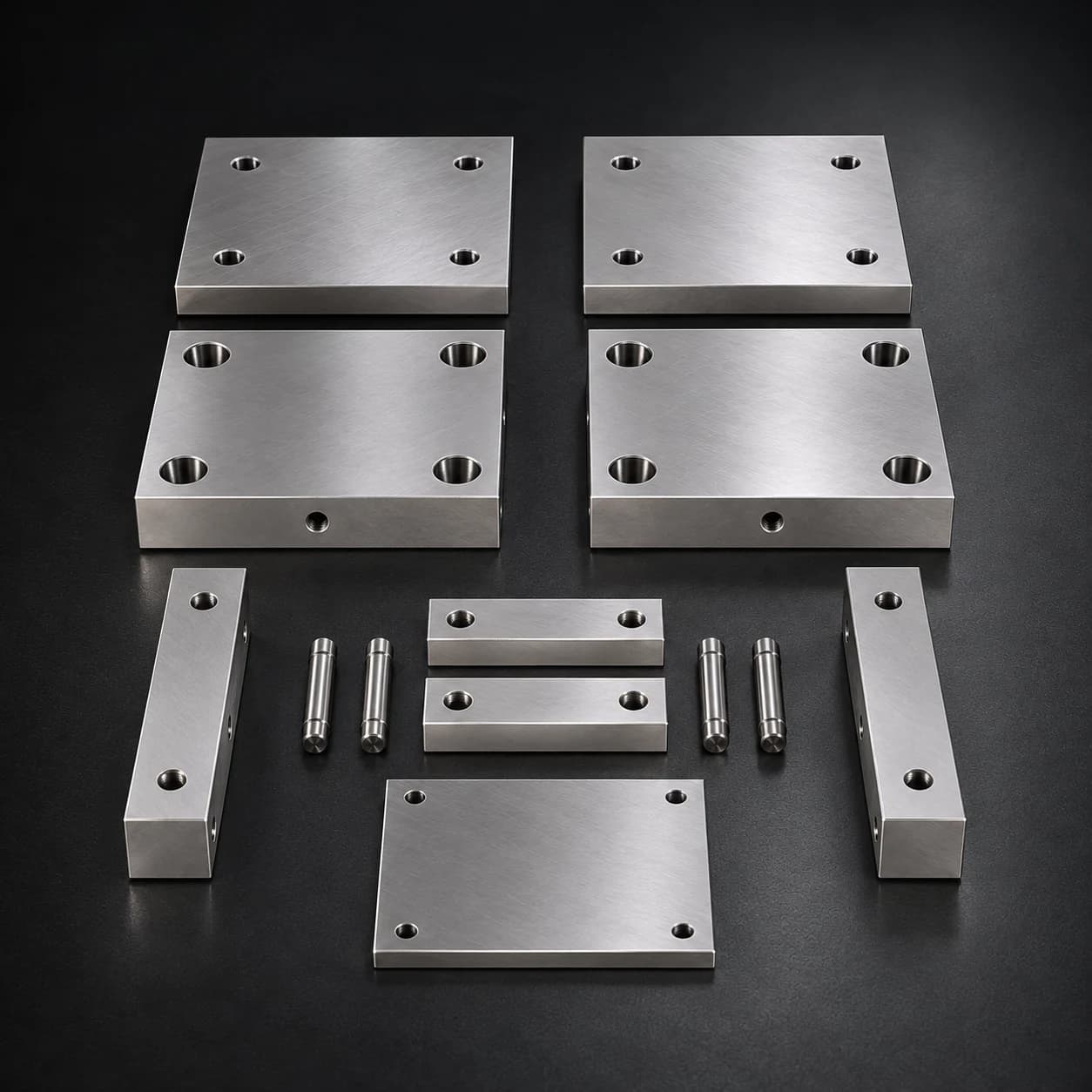

01 / PLATES & CUSTOMIZATION
Choose the plates. Make it yours.
Select your mold size, material grades and plate thicknesses. Choose clamp, core and cavity plates, backing plates, risers and the ejector set to suit your build.

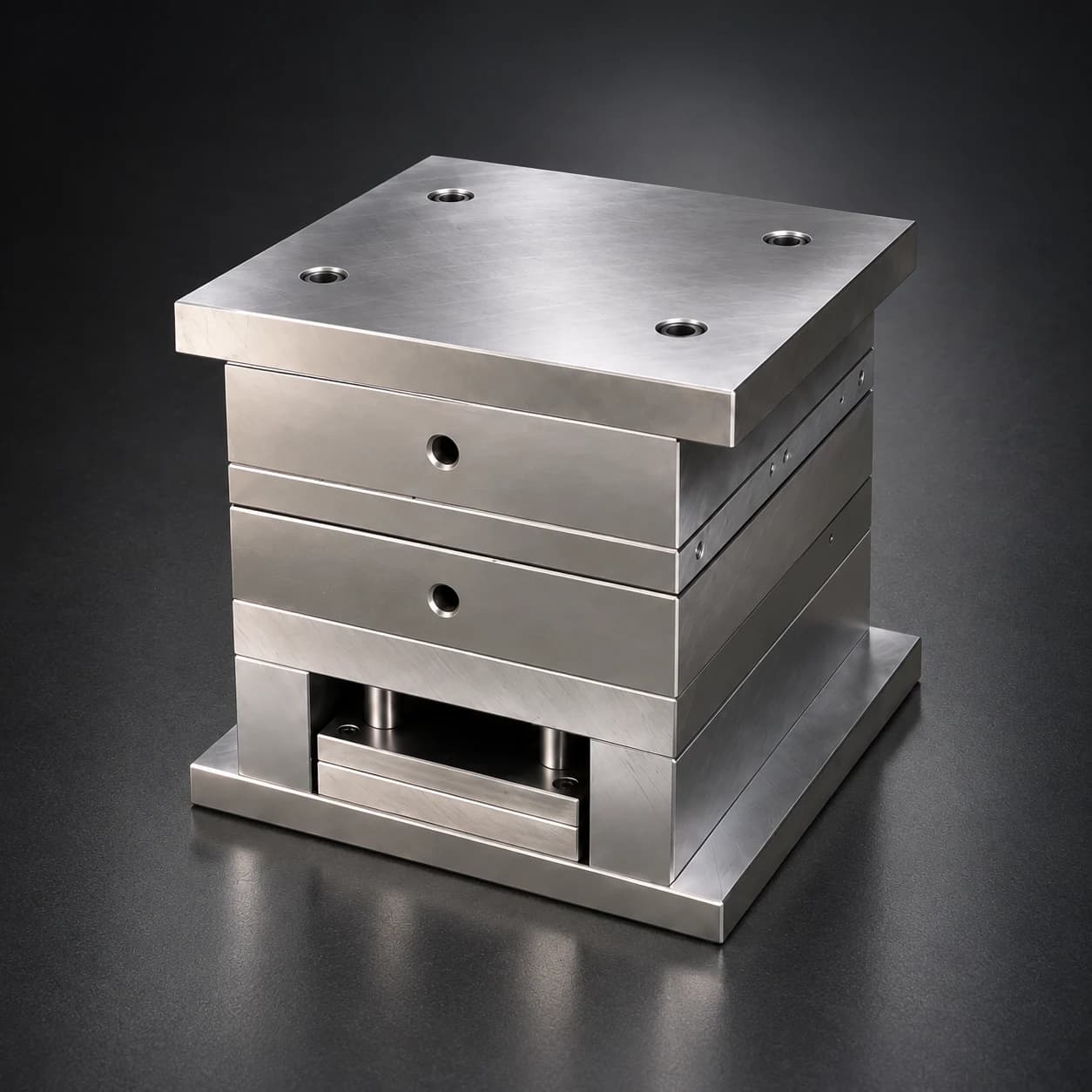

02 / YOUR MOLD BASE
Bring your mold base together.
Review the complete assembly in the live 3D configurator. Choose compatible guiding holes and threads, then check whether your configuration is available from stock or made to order.

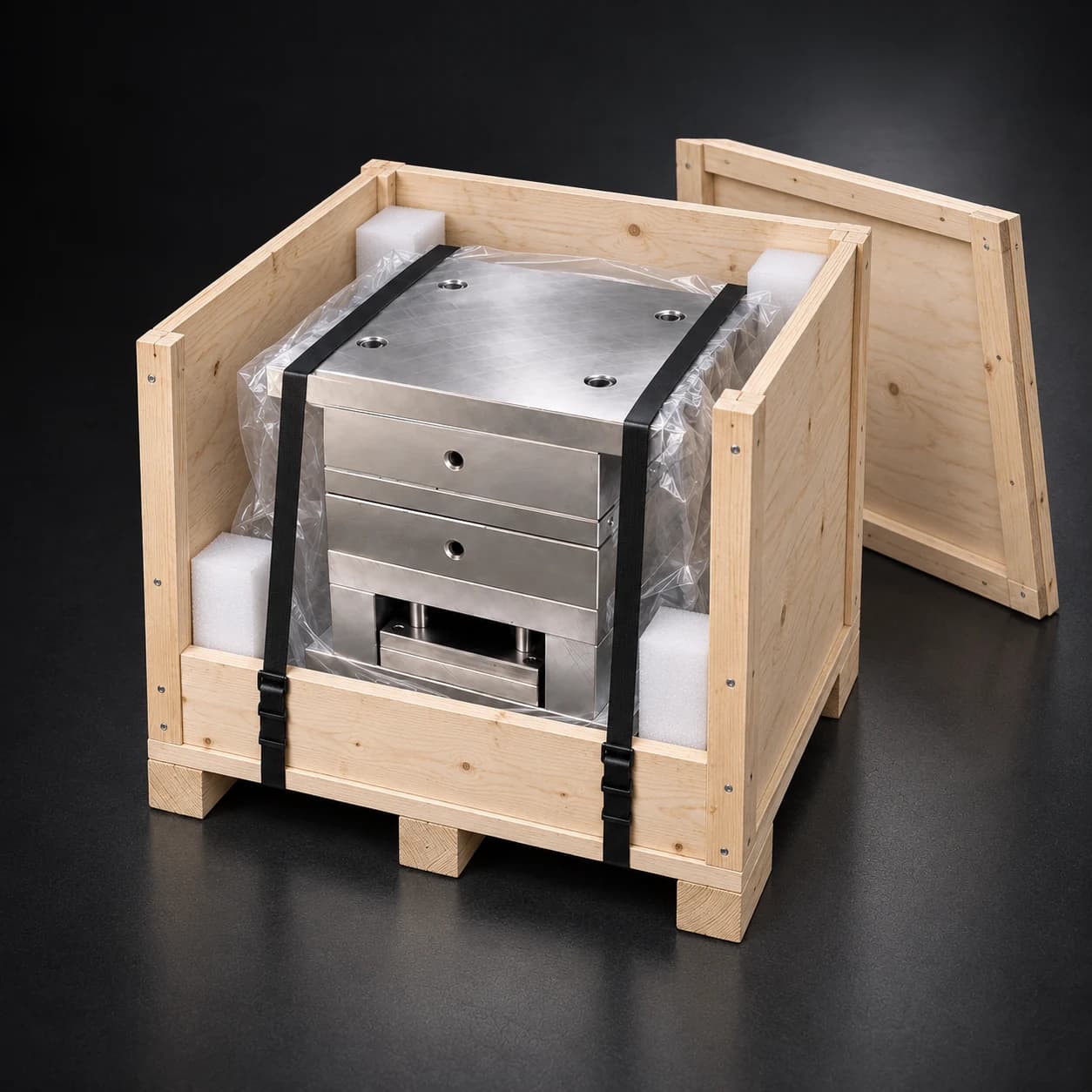

03 / PACKING & DELIVERY
Packed with care. Ready for delivery.
Protective wrapping, cushioning and a secure wooden crate help protect your mold base in transit. Share your destination and required date so we can confirm packing and delivery with your quotation.
Configure your mold base
THE GRADE YOUR JOB NEEDS
Start with
the right material.
Choose from our material library, or tell us the grade your application requires. We also source other mold and tooling materials on request.
Discuss a material requirementLoading our material grades…
Other grades, conditions and material specifications can be requested. Our team confirms availability with your quotation.

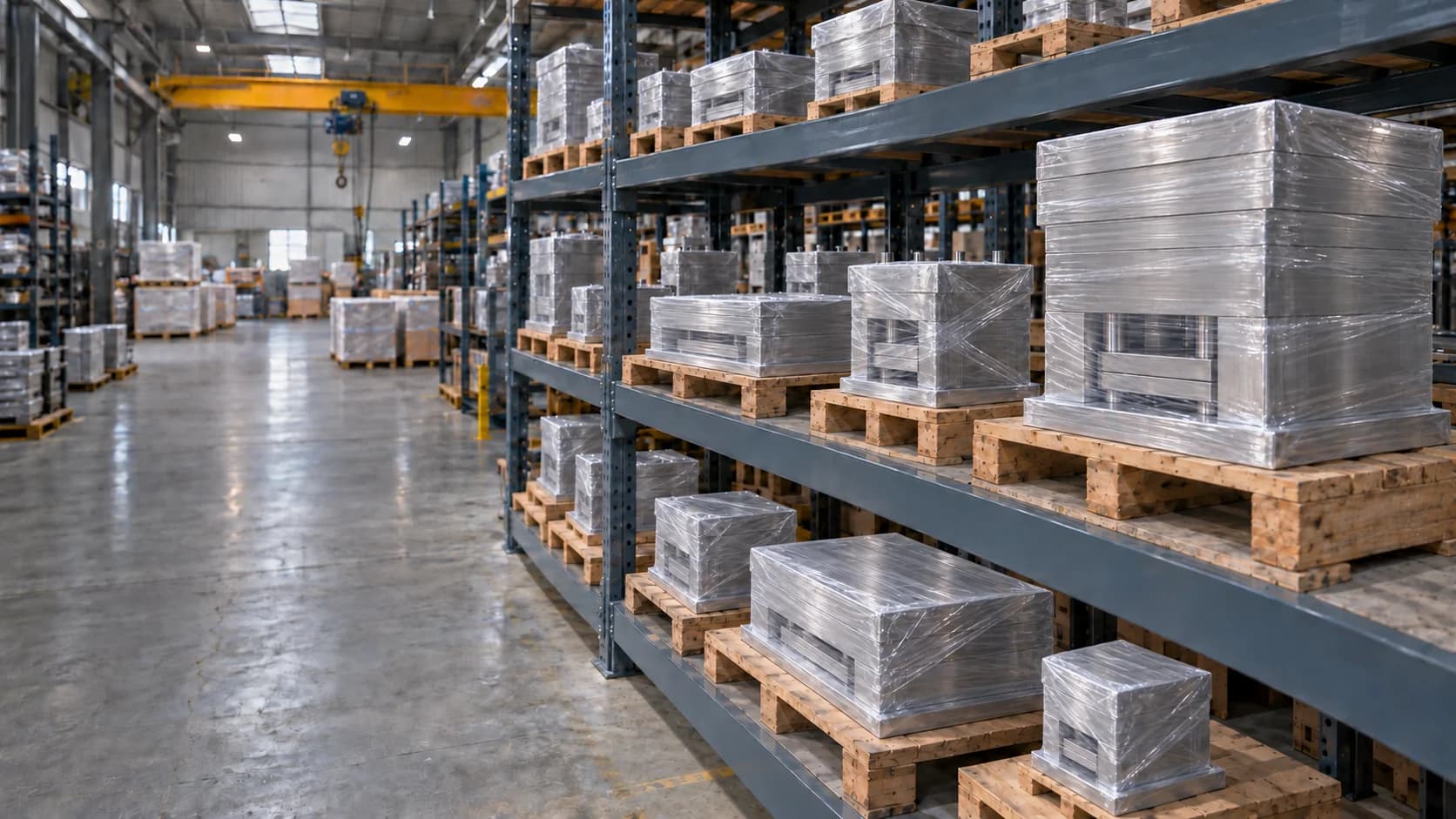

KEEP PRODUCTION MOVING
Fast delivery.
A smoother next step.
Ready stock and custom orders, with preparation and delivery planned around your project. Share your required date and destination so we can confirm the best supply option.
Ready stock Made to order
Check availability & delivery FROM SPECIFICATION TO SUPPLY
A clear path to your next part.
Your dimensions start the conversation. We confirm the material, preparation, price and delivery with you.
Configure your requirement
Choose the product, grade, finished dimensions and quantity. Review your selection in the live preview.
Receive your quotation
Send your requirement. Our team discusses availability, specifications, price and delivery with you.
Confirm and keep moving
Agree the order details with our team. Preparation, checks and delivery follow the confirmed specification.
YOUR NEXT JOB STARTS HERE
You have the specification.
Let’s prepare the rest.
Send your sizes, grade and quantity. We’ll help you take the next step.
